Open-Plan Kitchen-Diner: Design Considerations for a London Terrace (2026)

The open-plan kitchen-diner is the single most-requested feature in London renovations — almost every Victorian and Edwardian terrace project we work on involves knocking through walls to create one. Done well, it transforms how a house lives. Done badly, you get a wind-tunnel of noise with no privacy and an awkward layout. Here's how to design it right.

Why London terraces want open-plan kitchen-diners

Most Victorian and Edwardian terraces were built with three small rooms at the rear: a small kitchen (back addition), a separate dining room, and a small reception/morning room. The walls between them were structural — supporting the floor above. Knock them out and you replace three cramped rooms with one large family living space. Combined with a rear or wrap-around extension, the new room can become 40-60 sqm — the heart of the home.

Start with how you'll use the space

Before drawing any plans, think about how you'll actually live in the room. Honest answers to:

Where will the family eat breakfast on a normal weekday morning?
Where will you host 8-10 people for dinner?
Where will small children play while you cook?
Where will you do homework / laptop work?
Where will you watch TV / listen to music?
How often will it be just you and how often will the room be full?

The answers shape zoning. A space designed only for entertaining is different from a space designed for daily family life.

Three zone layout — the classic

The successful open-plan kitchen-diner usually has three distinct zones flowing into each other:

Cooking zone — runs of cabinets, sink, hob, fridge. Usually wrapped around two or three walls in the original kitchen position, or as an island in the centre.
Dining zone — table for 6-8 people, sometimes with a banquette built against one wall to save space.
Sitting zone — sofa, low table, sometimes TV. Often positioned by the bi-fold doors facing the garden.

Each zone wants its own focus but the room should still feel like one space. Subtle zoning techniques: different flooring (concrete in kitchen, timber in dining/sitting), different ceiling heights, lighting changes, low-level joinery (a sideboard between dining and sitting).

Layout options

Galley kitchen + open dining/living

Kitchen runs along the side walls of the original back addition, dining/sitting in the new extension area facing the garden. Simple, separates wet/cooking activity from social. Works well for terraces 4-5m wide.

Island kitchen + open dining/living

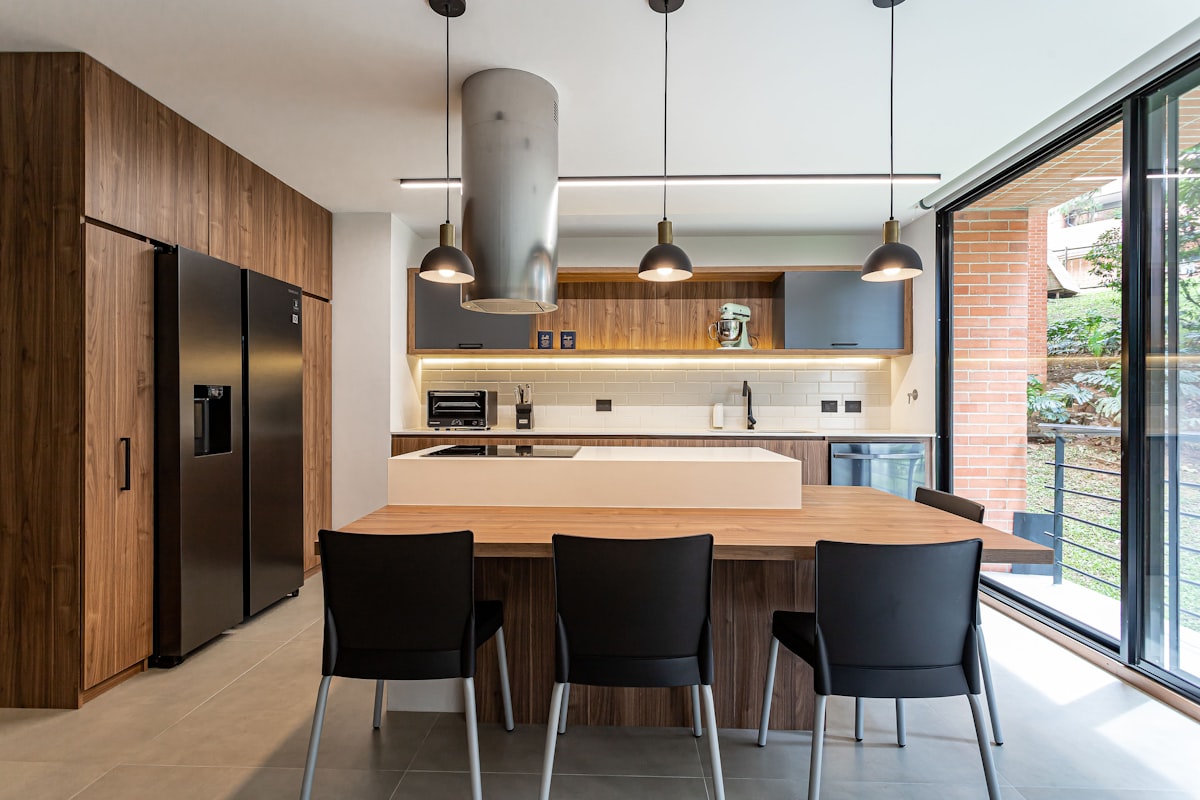

Kitchen with an island that doubles as a breakfast bar and a visual separation from the living zone. Hob can be on the island (allows cook to face guests) or on the back wall. Needs more width — works on 5m+ terraces.

L-shaped kitchen + open dining

Kitchen wraps an L into two walls, leaving the rest of the room for dining/sitting. Maximum counter space. Works on most terrace widths but can feel like a wall of kitchen at one end of the room.

Broken-plan (semi-open)

Not fully open — uses partial walls, large openings, or sliding doors to separate kitchen from dining/living. Quieter (cooking sounds and smells don't dominate) but loses some of the open feel. Popular alternative when the open-plan idea is too open.

Structural considerations

Removing the back wall

Almost every open-plan kitchen-diner in a Victorian terrace involves removing the entire rear wall of the original kitchen to merge with the extension. That wall is load-bearing — supports the upper floor. You need:

Structural engineer's design for the new opening (typically 6-8m wide)
Steel RSJ(s) sized for the dead and live loads above
Pad-stones at each end transferring load to the existing walls
Temporary propping during the work (24-72 hours)
Fire-protective boxing of the steel (Building Regs Part B)

Removing the wall between kitchen and dining room

If you're also knocking out the wall between the original kitchen and the original middle/dining room, that's another load-bearing wall and another structural opening. Many projects combine both into one massive 6-8m opening at the rear.

Light — the make-or-break design factor

Once you've knocked through and lost the original rear and side windows, the centre of the new room can be dark. Counter this with:

Roof lights / skylights over the centre of the room — bring zenithal light into the deepest part
Roof lantern — pyramid skylight, dramatic centerpiece, brings the most light
Bi-fold or sliding doors at the rear — entire back wall becomes glazing
Side rooflights — strip skylights along the boundary wall (especially if there's no side window)
Internal glass — internal door from hallway becomes a frame opening, allowing light to wash from front to back

Acoustic considerations (people skip this and regret it)

Hard floors + plastered walls + open volume = echo. A child crying in the kitchen sounds twice as loud at the sofa. Three people having three different conversations becomes unintelligible noise. Solutions:

Some soft surfaces — rugs in the sitting zone, fabric pendant lampshades, soft furnishings
Acoustic ceiling treatment in the kitchen (perforated plasterboard above the cooking zone)
Different ceiling heights to break up the volume
A bookshelf wall — books are natural sound absorbers

Ventilation — kitchen-specific

In a closed kitchen, cooking smells stay in the kitchen. In an open-plan kitchen-diner, every cooking session perfumes the dining and sitting zones. Solutions:

Ducted extractor fan — vents to outside, not recirculating. Critical for serious cooking.
High-extraction-rate hood — minimum 600 m³/hr air movement for a 5+ person household
MVHR (mechanical ventilation with heat recovery) — for new extensions, provides whole-room air change while recovering heat
Don't rely on recirculating extractor hoods alone — they don't clear cooking smells, only filter grease

Heating

Large open spaces are hard to heat with radiators. Underfloor heating is almost universally specified for new open-plan extensions — gives even warmth across the full footprint without radiator placement constraints. Cost £1,500-3,500 to install across a 25-40sqm extension.

Storage — the missing element

Open-plan kitchens with islands have visible storage only — what you display, you store. Plan for:

Pantry / utility room — small adjoining room or large larder cabinet to keep dry goods, small appliances, cleaning supplies out of sight
Tall cabinets — floor-to-ceiling storage runs in the kitchen for everyday items
Built-in dining storage — sideboard or floor-to-ceiling units in the dining zone
Banquette seating with under-seat storage — for kids' toys, table linens, board games

Frequently asked questions

Do I always need to knock out all the walls?

No. Broken-plan (partial walls, large openings) is often a better compromise — you get the open feel without losing all privacy and acoustic separation. Many of our most successful kitchen renovations keep one half-height wall or a glass partition.

How much does the structural opening cost?

For a typical 6m opening in a Victorian terrace: structural engineer £600-1,500, steel supply and install £3,000-5,000, making good plaster + boxing-in £2,000-3,500. Total around £6-10k for the structural element alone.

Can I do this without an architect?

For straightforward designs and within permitted development, a good design-led builder can handle it. For full planning, layout reconfiguration, or premium finishes, an architect (£4-10k for the design package) usually pays back in better-functioning space and avoiding rework.

Will an open-plan kitchen-diner add value to my London house?

Typically yes — open-plan kitchen-diners are what most London family buyers actively search for. The combination with a rear or wrap-around extension is one of the highest-ROI renovations on a Victorian terrace.

Is open-plan still in style in 2026?

Yes, but broken-plan and 'flexible separation' (sliding/folding partitions) is increasingly popular. The pandemic shift toward home working revealed limitations of pure open-plan — sometimes you need separation for video calls or quiet work.
